- One multi lock key
- For locking system of two doors
- Door thickness 13 - 30 mm
- Pin hole diameter 4 mm
- Key bit length 4,5 mm
- Steel self-colour
- With key and screws
Back set
Dimensions
Material
Finish / colour
Packaging
Order no.
Added to Your Shopping Cart
Technical details
| Back set | 25 |
| Dimensions | 75 x 48 x 10 mm |
| Material | steel |
| Finish / colour | unfinished |
| Mod. number | 8 |
| Height | 75 |
| Width | 48 |
| Depth | 10 |
| Pin hole diameter | 4 mm |
| Min. door thickness | 13 mm |
| Max. door thickness | 30 mm |
| Mounting side | left or right |
| Type of installation | for screwing on |
| Length of bit | 4.5 mm |
| Length of key | 70 |
| Locking mode | One multi lock key |
| Including fixing material | Yes |
| Order no. | 9100019 |
| EAN | 4008057896375 |

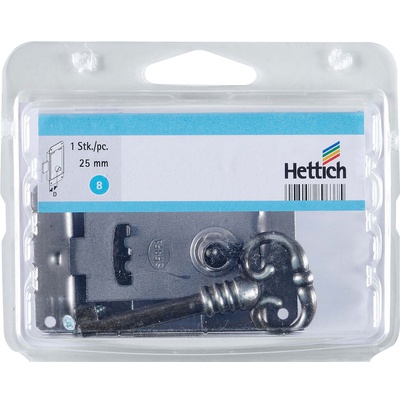

| Article | Screw-on lock, locking system of two doors |
| PU | 1 ea. |
| Content structure PU | - |
